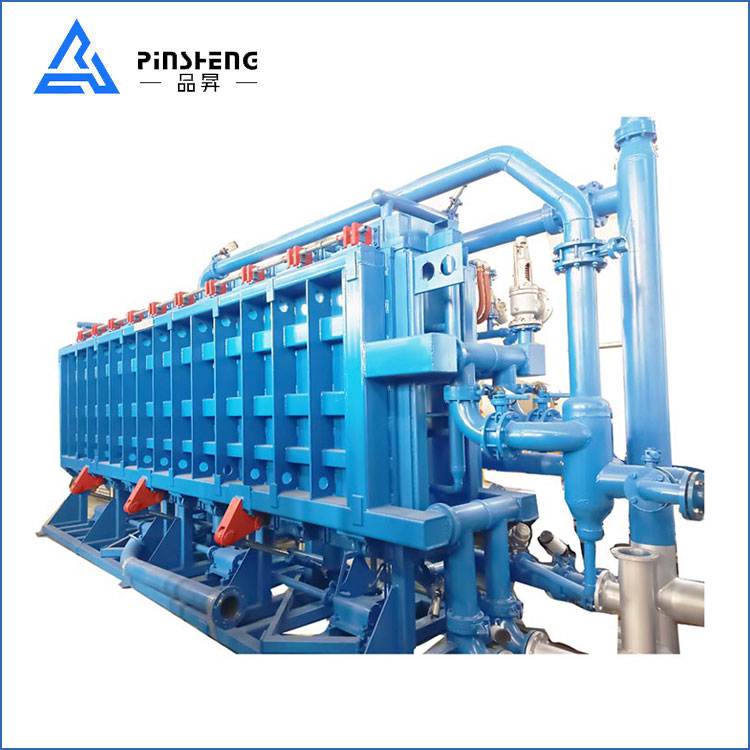

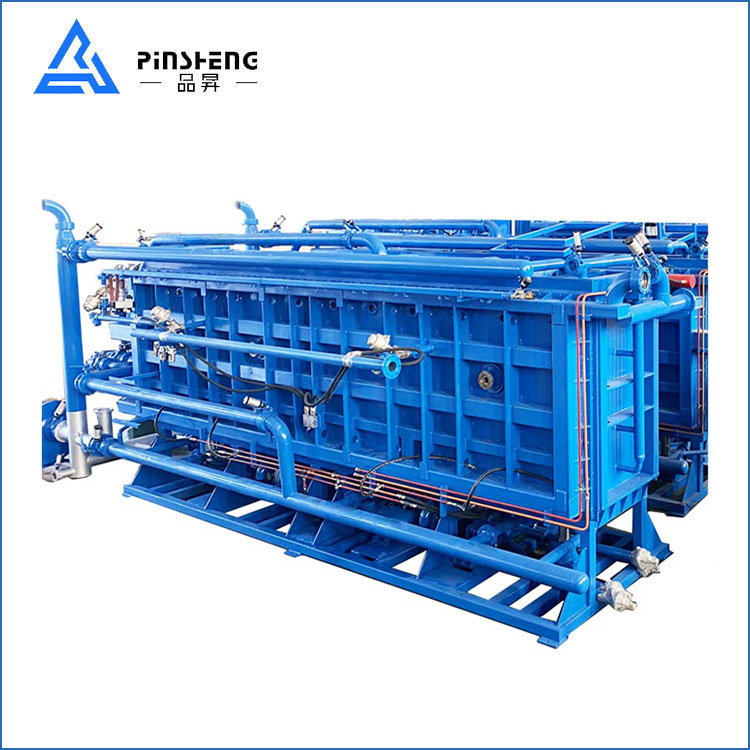

Pinsheng EPS Block Molding Machine

Produsen Mesin Ningbo PinSheng minangka salah sawijining MESIN EPS profesional ing China, kita nggawe MESIN MULDING BLOCK EPS berkualitas tinggi, Sugeng rawuh kanggo tuku Mesin Cetak Blok EPS Pinsheng saka kita.

Kirim Pitakonan

Deskripsi Produk

Pinsheng EPS Block Molding Machine

Pambuka produk

Model: PSBM200-800VC/AC

Merk: PinSheng

Struktur Mekanik:
a. cetakan mesin dilas menyang tabung persegi panjang sing kuwat lan piring baja sing njamin kekuwatan sing dhuwur kanggo safety tambahan mesin ..
b. sawise perawatan panas kabeh pigura jamur diproses liwat sand-blasting, nemen nambah kinerja karat lan urip layanan saka peralatan.
c. Ngadopsi telung gauge Jerman lan katup safety kanggo proteksi multi-safety.

Sistem uap:
Telung katup bal, dibandhingake karo sistem kontrol katup uap gedhe ngirit 20% uap, kanthi katup kupu standar ISO, sing nambah stabilitas lan nambah umur mesin.

Sistem Kontrol:
a.adopts PLC (Mitsubishi) lan HMI (WEINVIEW) nggawe operasi gampang.
b.stroke diatur dening encoder kontrol liwat setelan HMI, imbuhan gampang lan akurasi dhuwur.

Item	Unit	PSBM200VC	PSBM300VC	PSBM400VC	PSBM600VC	PSBM800VC
Ukuran Cavity Mould	mm	2040X1240X630	3060X1240X630	4080X1240X630	6100X1240X630	8120X1240X630
Ukuran Blok	12 g/L	2000X1200X600	3000X1200X600	4000X1200X600	6000X1200X600	8000X1200X600
Inlet Uap	mm	DN100	DN100	DN150	DN150	DN200
Konsumsi Uap	kg/siklus	20-30	30-40	45-55	60-70	80-100
Tekanan uap	Mpa	0.8	0.8	0.8	0.8	0.8
Udara Terkompresi Inlet	mm	DN50	DN50	DN50	DN50	DN50
Udara Terkompresi Konsumsi	m³ / siklus	x	1.5-1.8	1.8-2	2-2.3	2.2-2.5
Udara Terkompresi Tekanan	Mpa	0.6	0.6	0.6	0.6	0.6
Drainase Steam ventilasi	mm	âˆ...125	âˆ...150	âˆ...200	âˆ...200	âˆ...250
Outlet Blower Drainase	mm	âˆ...125	âˆ...125	âˆ...150	âˆ...150	âˆ...200
Throughput	15 kg/m³	5-12 min	6-15 min	7-18 min	8-18 min	10-18 min
Beban sing disambungake	kw	9.5	11	13	13	16.5
Ukuran njaba	mm	4000X2200X2900	5030X2270X2900	x	8500X2700X2900	11300X2800X3100
Bobot	kg	4200	6000	8500	9500	13800
